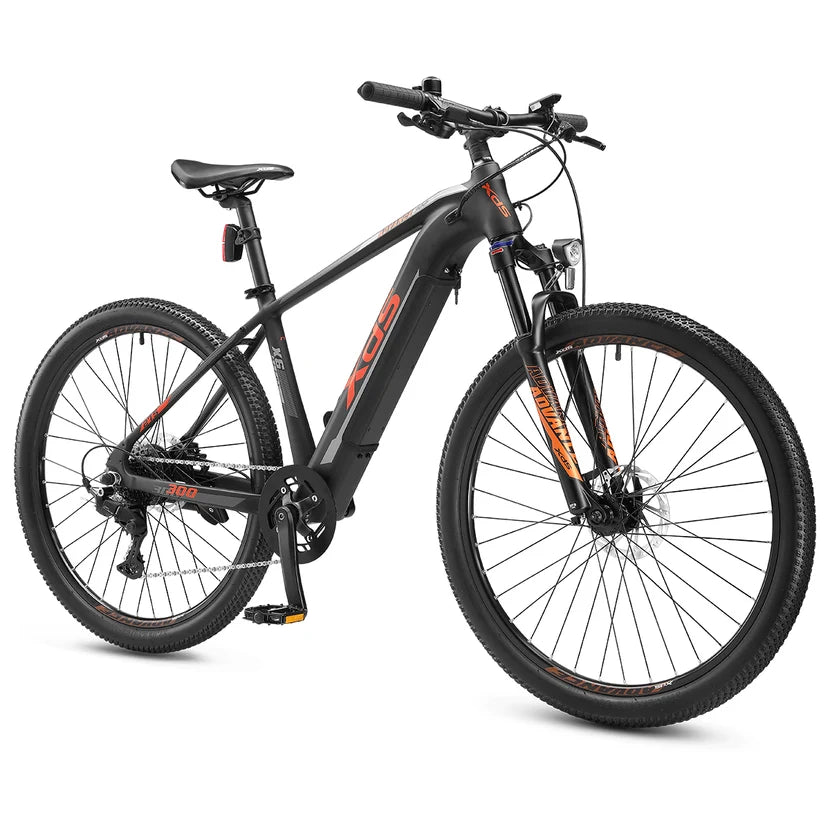

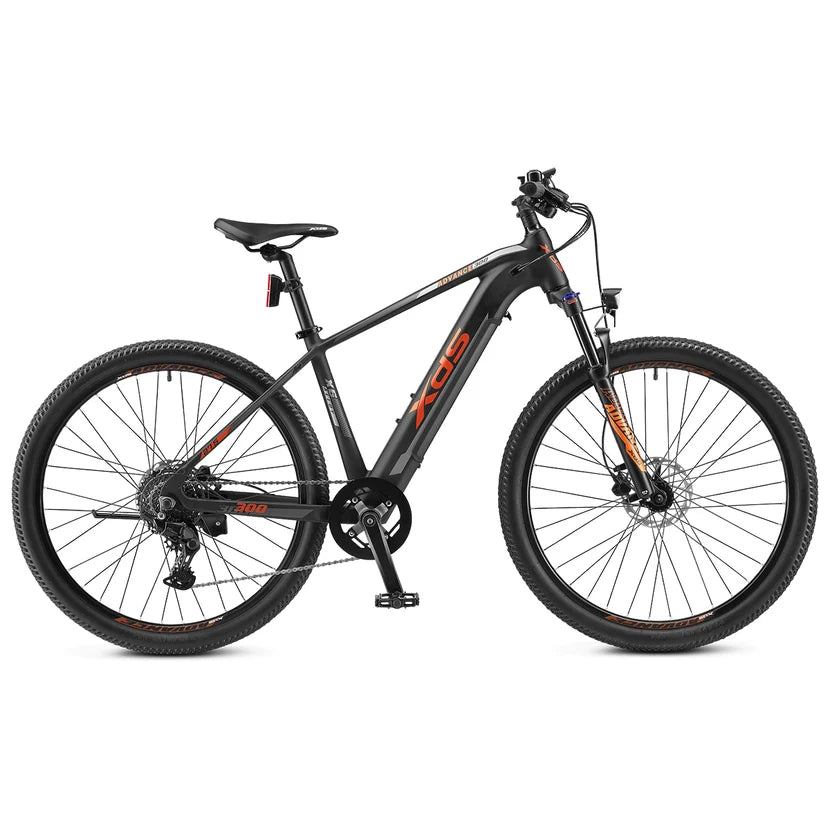

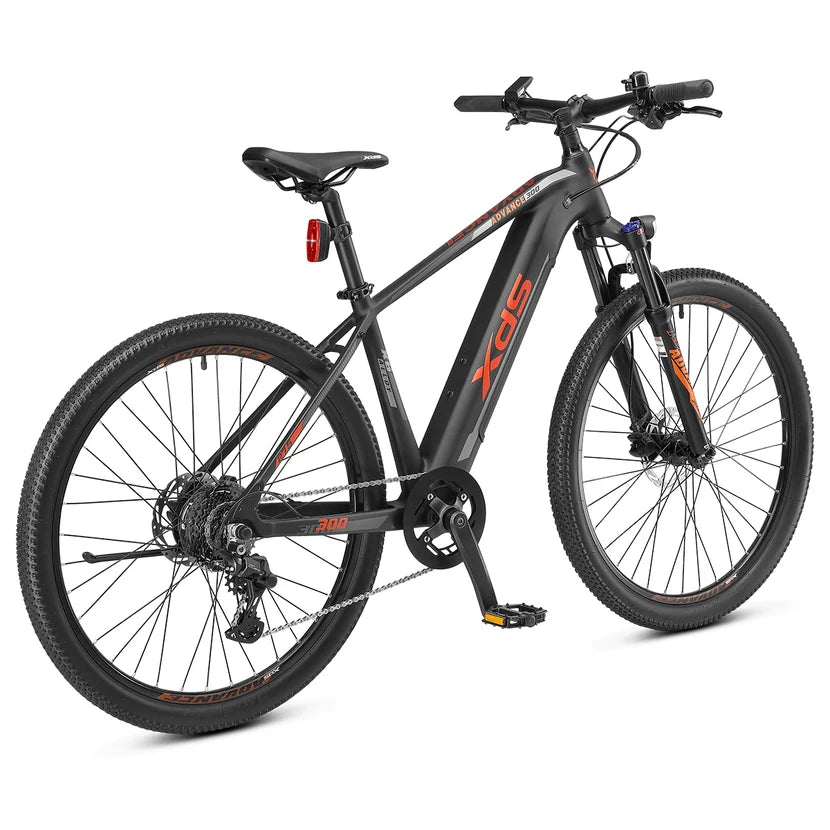

XDS Advance 300 27.5" E-MTB

Frame Sizes - 17", 19""

Frame - 27.5"" Alloy

Fork - 27.5'' travel: 100mm

Handlebar - W:640mm H=15mm 6°

Grips - 130L

Stem - φ28.6mm E:45mm H:40mm 7°

Seatpost - φ30.9×350mm

Seat Clamp - φ35mm with QR

Saddle - Black Saddle

Pedals - 9/16""

Right Shifters - Shimano SL-U4000-9R, Cues 9sp Rapidfire Plus

Rear Derailleur - Shimano RD-U4000, Cues 9sp Shadow Design

Front Brake - Hydraulic disc 160mm

Rear Brakes – Hydraulic disc 160mm

Freewheel - Shimano CS-LG400-9, Cues 9sp, 11-13-15-17-20-23-26-30-36T

Chainwheel & Cranks - 40t 170mm

Chain - 1/2″×11/128″×112L

Headset - φ28.6×φ44-φ55×φ30mm 15mm spacer

Front Hub - 13G×36H M9×100×108mm

Spokes - 13G

Tyre -  27.5""×2.1""

Rim - 27.5""×13G×36H

Motor - XDS 36V/240W, Top Speed 25KM/H, Torque 36nm

Battery - 36V12.8AH Panasonic/LG 3200ah cells

Charger - 42V/3A，Imput：100-240V

Display - XDS 36V

Bell Included

Kickstand L:270mm non-adjustable

Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.
