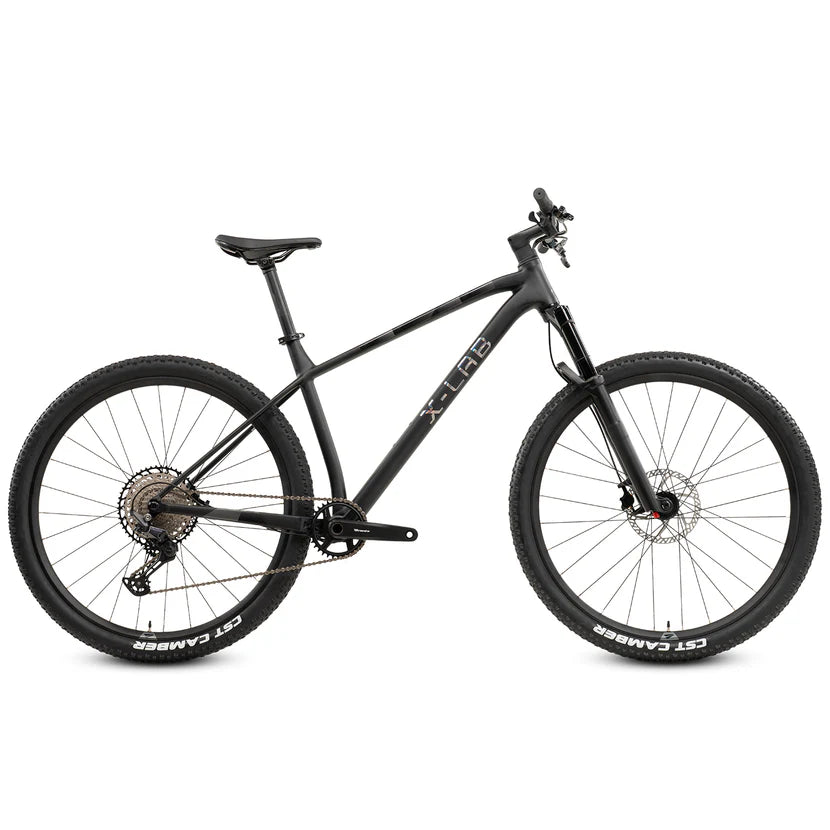

X-LAB MT3 SPECIFICATIONS

Frame - XDS X6 Aluminum Frame

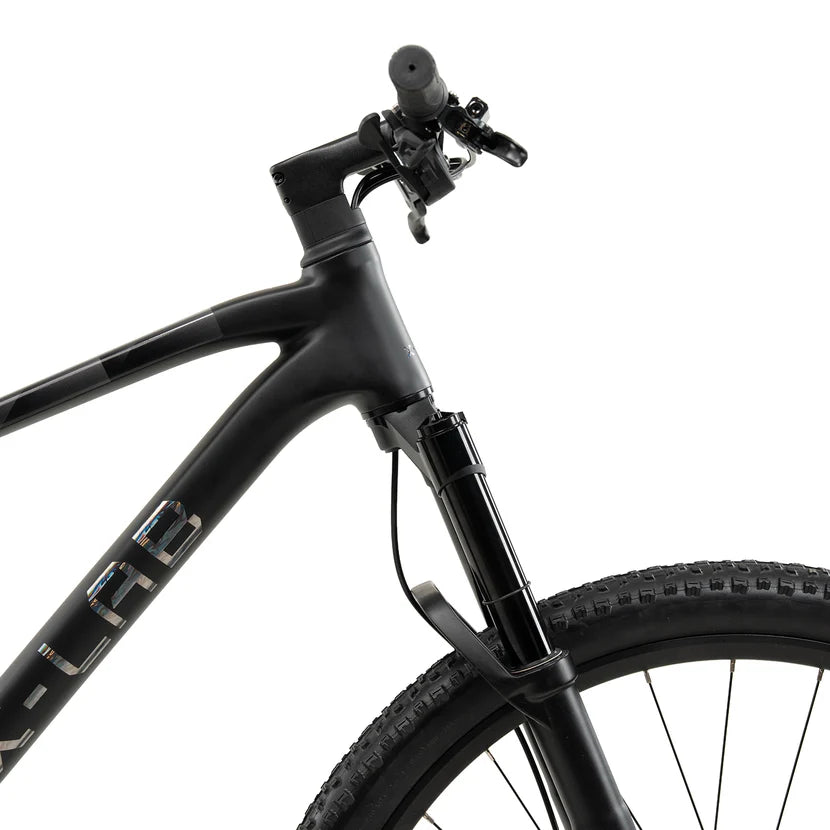

Fork - Branta Magnesium Suspension Fork, Air Spring, Rebound Adjustable, 100mm Travel for 27.5''/ 120mm Travel for 29''

Stem - Branta Aluminum Stem, 85mm Length, 0 Degree Rise

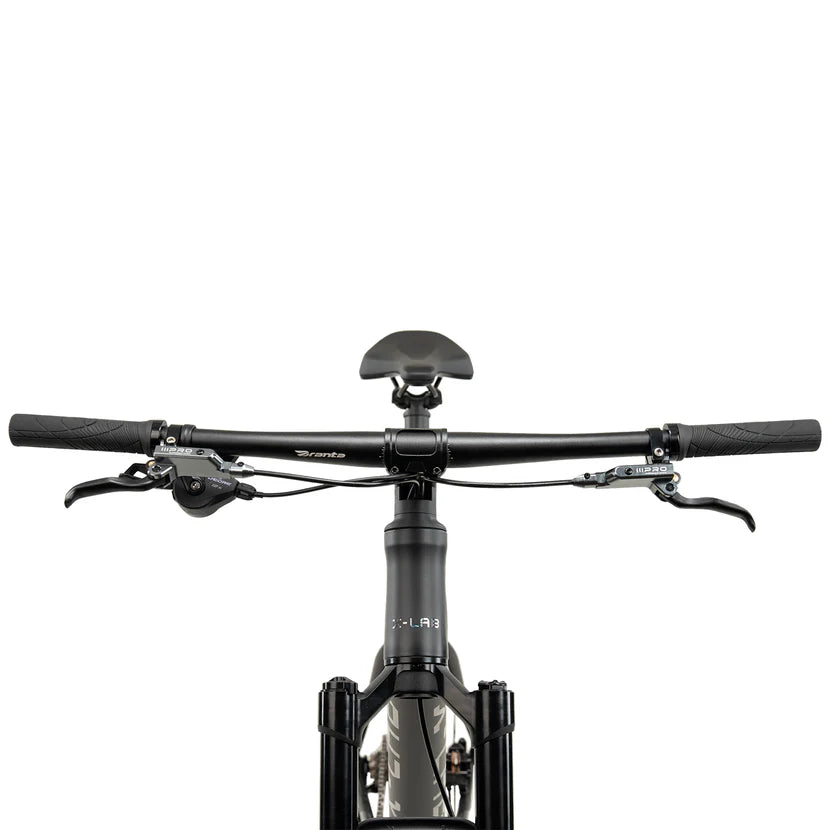

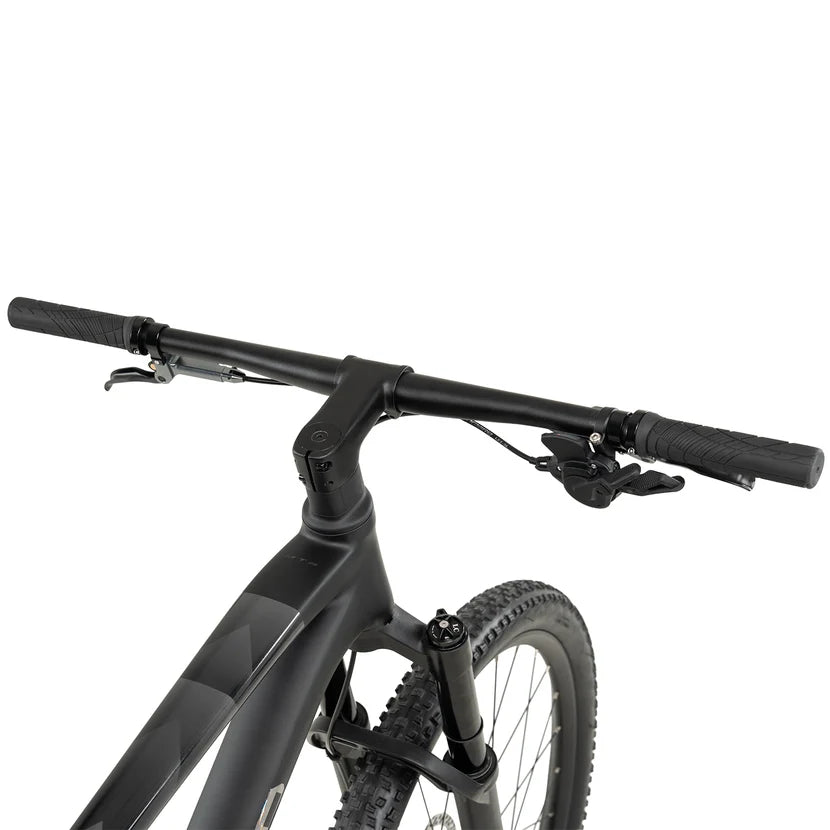

Handlebar - Branta Aluminum Handlebar, 660mm Width, 7 Degree Backsweep

Seatpost - Branta Aluminum 31.6mm

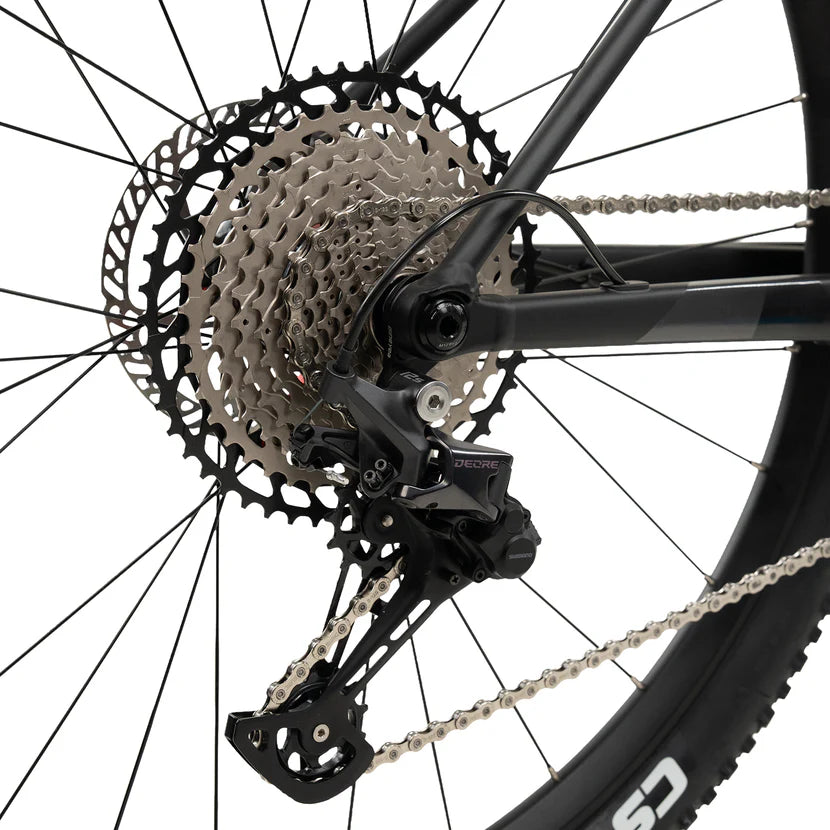

Rear Derailleur - Shimano Deore RD-M6100-SGS, 12-Speed

Shifter - Shimano Deore SW-M6100-R

Brakes - Branta C5 Hydraulic Brakes, 2 Pistons Caliper

Cassette - 11-50T

Crankset – Branta Aluminum, 170mm, 34T Narrow Wide

Bottom Bracket – BSA 24mm

Chain – SUMC

Wheelset – Branta Aluminum XC+

Tires – CST SERRATUS 29 x 2.25  Saddle – Branta SRX+

Weight – 12.23kg

*Continuous Product Improvement

Innovation never stands still. As part of our commitment to building the best possible bicycles, X-LAB reserves the right to update specifications, components, colours, and other product details at any time without notice. We make every effort to keep our published specifications current, but minor variations may occur between production batches. Please contact your local X-LAB dealer or Customer Support if you would like to confirm the latest specifications before purchase.
