Overview

In It to Pin It

Just call it the 'sweet spot' - the best of both worlds. Big-bike power and ride time, with lightweight-bike agility and handling. In other words, exactly what e-mtb riders everywhere have been waiting for. Moterra SL might just be the most fun mountain bike we've ever made.

Model Description

With full-power thrills and lightweight agility, Moterra SL 1 is built to go faster, ride harder, and deliver the goods on all kinds of terrain. Our lightest, full-power eMTB chassis has 150mm of Proportional Response Tuned Suspension and FlexPivot chainstays to maximize traction without the weight. A custom tuned Shimano's EP801 drive unit fires off 85Nm of torque the second your legs demand it, while the 601Wh battery delivers tons of range in a light package. Full Fox Factory suspension and rugged DT Swiss XM 1700 wheels track the terrain with unwavering grip, SRAM's XO AXS group cracks off crisp wireless shifts, and the mullet wheelset-29' up front, 27.5' in the back- balances party with precision.

What it's for

Fast, fluid, ridiculously fun trail riding on everything from the steep and techy to the fast and flowy.

Highlights

- Light and durable, full carbon, 150mm travel FlexPivot frame with Proportional Response suspension kinematics
- Top-of-the-line Fox Factory suspension - 160mm Factory Float 36 fork & Factory Float X rear shock
- SRAM's penultimate e-MTB group - XO AXS wireless 12-speed shifting, plus e*thirteen Race Carbon cranks & Magura MT7 hydraulic disc brakes
- Light and tough, DT Swiss XM 1700 Spline, tubeless-ready all-mountain wheelset
- OneUp V3 dropper post & Hollowgram SAVE vibration-reducing carbon handlebar
- Cannondale-tuned Shimano EP801 motor & custom, high-energy-density 601Wh internal battery

SPECS

- Frame - Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, internal cable routing, 29' FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset

- Fork - Fox Float Factory 36, 160mm travel, Grip X2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset

- Headset - Acros Adjustable Angle (1.2degree)

- Rear Shock - Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm

- Drive Unit - Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes

- Battery - Custom 601Wh battery

- Charger - Custom 4A

- Display - Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible

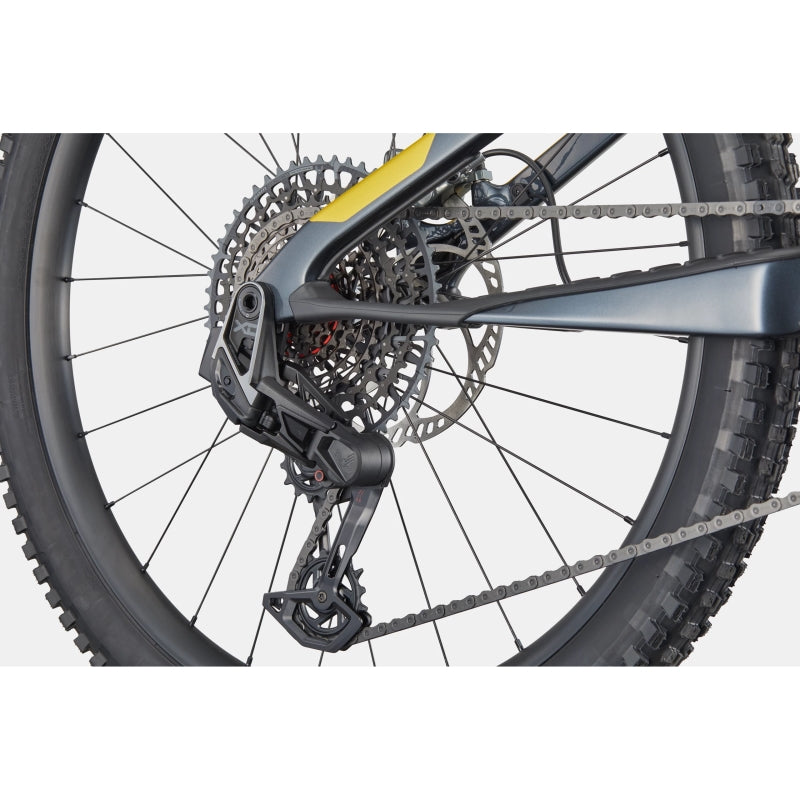

- Rear Derailleur - SRAM XO Eagle AXS, T-Type

- Shifters - SRAM AXS POD Controller

- Chain - SRAM XO Eagle, T-Type, 12-speed

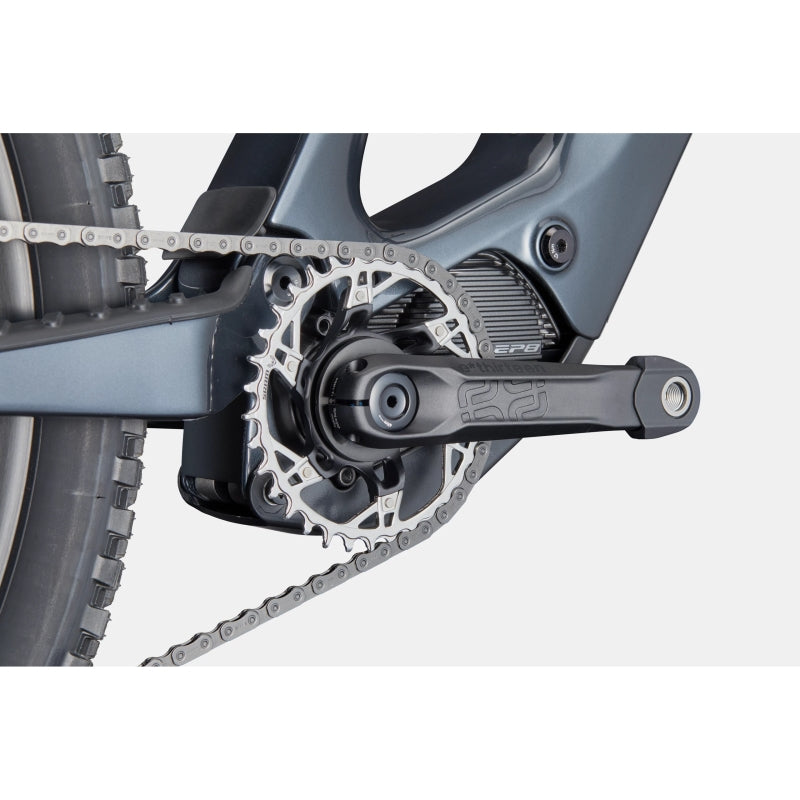

- Crank - e*thirteen e*spec Plus, 160mm (S/M), 165mm (L/XL), 34T

- Rear Cogs - SRAM XO Eagle, 10-52, T-Type, 12-speed
- Brakes - Magura MT7 4-piston hydraulic disc, 203/203mm Storm HC 6-bolt rotors

- Brake Levers - Magura MT7 HCW hydraulic disc
- Rims - DT Swiss XM 1700 Spline, 30mm inner width, TC tubeless ready

- Spokes - DT Swiss Competition, straight-pull

- Tire Size - 2.5

- Wheel Size - 29 / 27

- Hubs - (F) DT Swiss 350, 15x110mm / (R) DT Swiss 350 Ratchet System 36 SL, 12x148mm

- Tires - (F) Maxxis DHF, 29x2.5", 3C, EXO+, tubeless ready / (R) Maxxis Dissector, 27.5x2.4", 3C, EXO+, tubeless ready
Components

- Handlebar - HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8degree sweep, 5degree rise, 780mm

- Stem - Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0degree

- Grips - Cannondale Taper Ridge

- Saddle - Fizik Terra Ridon X3, Mobius Kium alloy rail

- Seatpost - OneUp V3, internal routing, 31.6, 180mm (S), 210mm (M/L), 240mm (XL)
- Extra 1 - Tubeless valves, SRAM AXS charger

Please note that, based on component availability and other factors, specifications are subject to change without notice.
