Point and Play

The reigning E-Enduro World Champ, Moterra LT transforms every trail into a never-ending playground. Power up climbs, flatten bumps, and tear through descents like a mosh pit in motion.

Model Description

The Moterra LT is where agility meets audacity. With a new full carbon frame, 170mm of front and 165mm of rear travel, and a mullet wheel setup, this bike lunges up brutal climbs and down nasty descents with unshakable confidence. The Bosch CX motor and 800Wh battery deliver lasting power, while the Fox 38 Performance fork and DHX coil shock provide a plush, controlled ride. SRAM Eagle 90/70 shifting and TRP EVO Pro brakes ensure you stay in control, no matter how wild things get.

What it's for

Getting after it on the wilder side. Steep climbs, fast descents, big hits, and endless laps

Highlights

- A light yet burly carbon fiber frame - Proportional Response size-specific kinematics, tuned for specifically for the coil shock and mullet wheels

- Bosch's most powerful system - Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range

- Hard-hitting Fox Suspension - 170mm Float Performance 38 fork and supple DHX Performance coil piggyback shock

- Rugged DT Swiss H 1900 Spline EMTB Wheelset - Built to survive - 30mm inner width, 370 hubs with durable Ratchet LN internals

- Tough, reliable SRAM Eagle 90/70 12-speed shifting

- Powerful braking from TRP EVO Pro 4-piston stoppers with 220/203mm rotors

SPECS

- Frame
Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5' - 1.8' tapered headtube

- Fork
Fox Float Performance 38, 170mm, Grip Damper 3Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset

- Headset
Acros ICR, 1.5" to 1.8", sealed bearings

- Rear Shock
Fox DHX Performance, Coil, 2 pos adj, 230x65mm

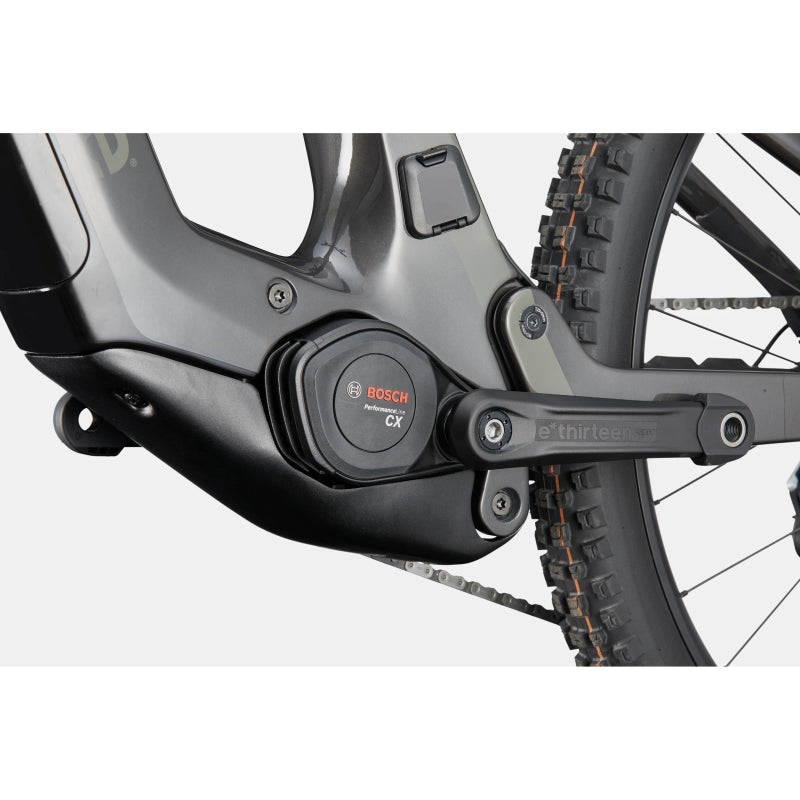

- Drive Unit
Bosch Performance Line CX

- Battery
Bosch PowerTube, 800Wh

- Charger
Bosch 4A

- Display
Top Tube System Controller w/ Mini Remote

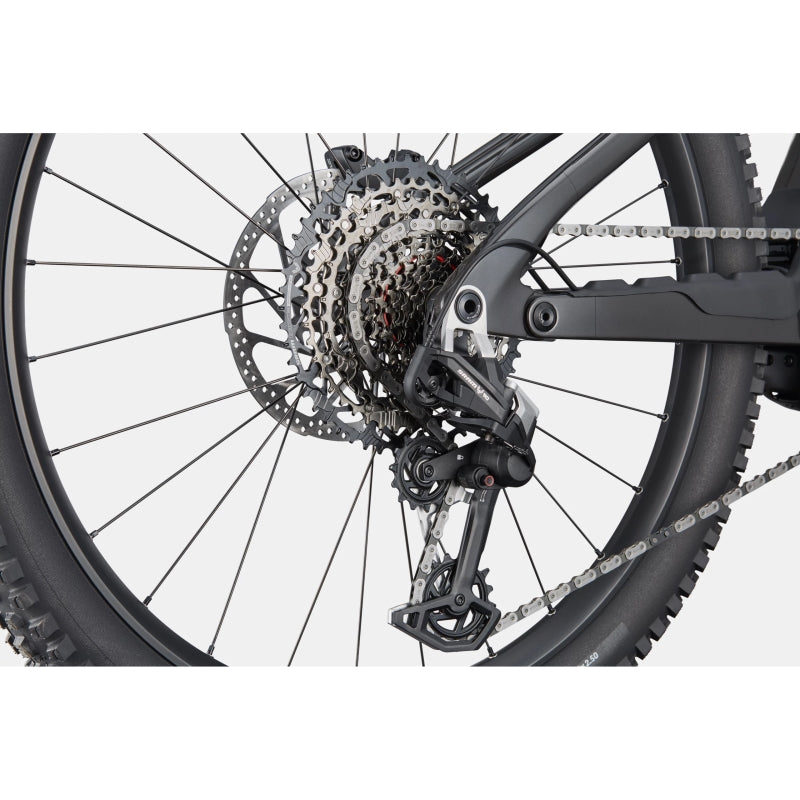

- Rear Derailleur
SRAM Eagle 90, T-Type

- Shifters
SRAM Eagle 90, T-Type, 12-speed

- Chain
SRAM Eagle 70 T-Type, 12-speed

- Crank
e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T

- Rear Cogs
SRAM Eagle 70 T-Type, 10-52, 12-speed

- Brakes
TRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors, 2.3mm thickness

- Brake Levers
TRP EVO Pro hydraulic disc

- Rims
DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)

- Spokes
DT Swiss Competition, straight pull

- Tire Size
2.5

- Wheel Size
29 / 27

- Hubs
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt

- Tires
(F) Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable, tubeless ready / (R) Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready

- Handlebar
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8degree sweep, 4degree rise, 800mm

- Stem
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0degree

- Grips
Cannondale TaperRidge

- Saddle
Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail

- Seatpost
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

- Extra 1
Tubeless Valves, Bosch PowerMore range extender compatible


Please note that, based on component availability and other factors, specifications are subject to change without notice.
