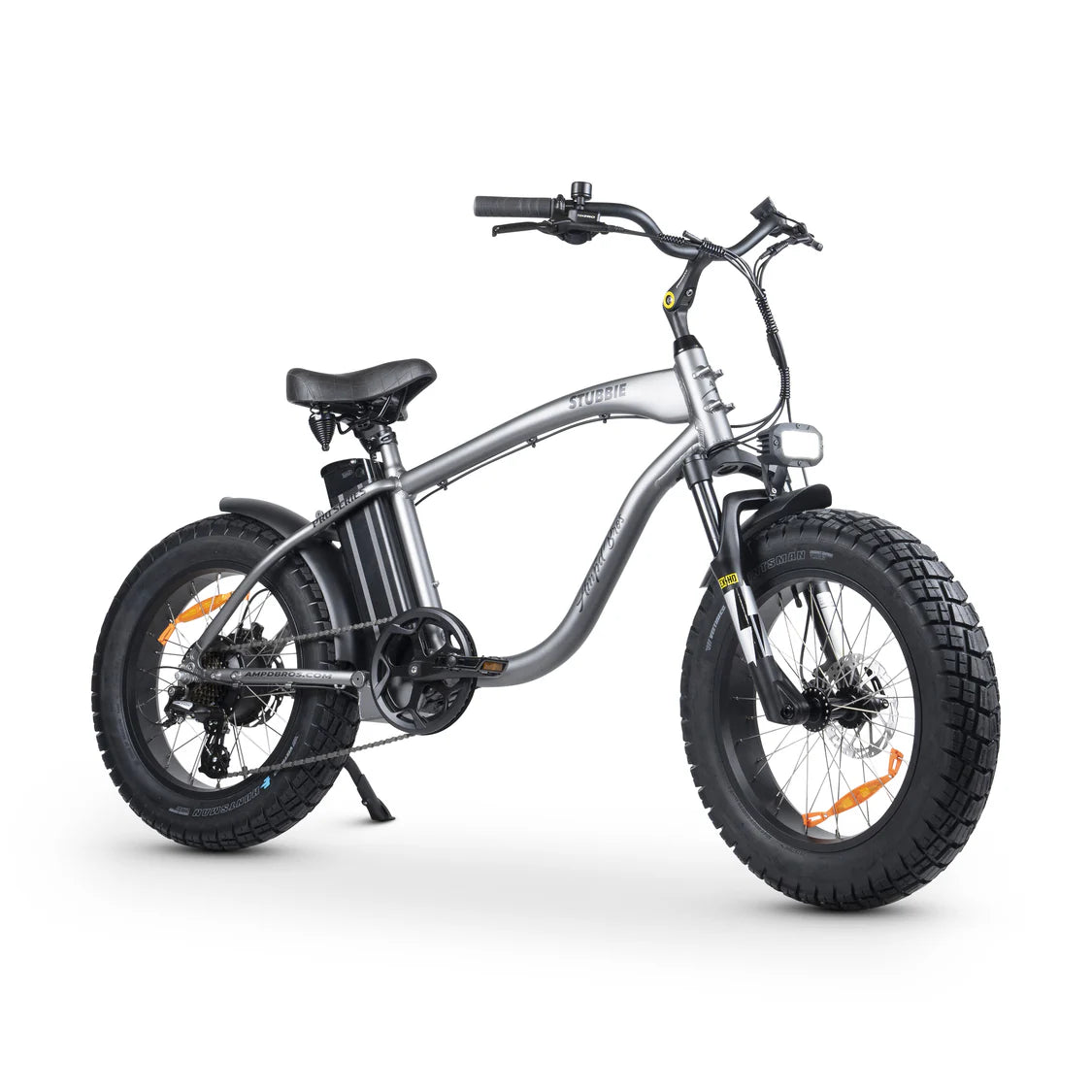

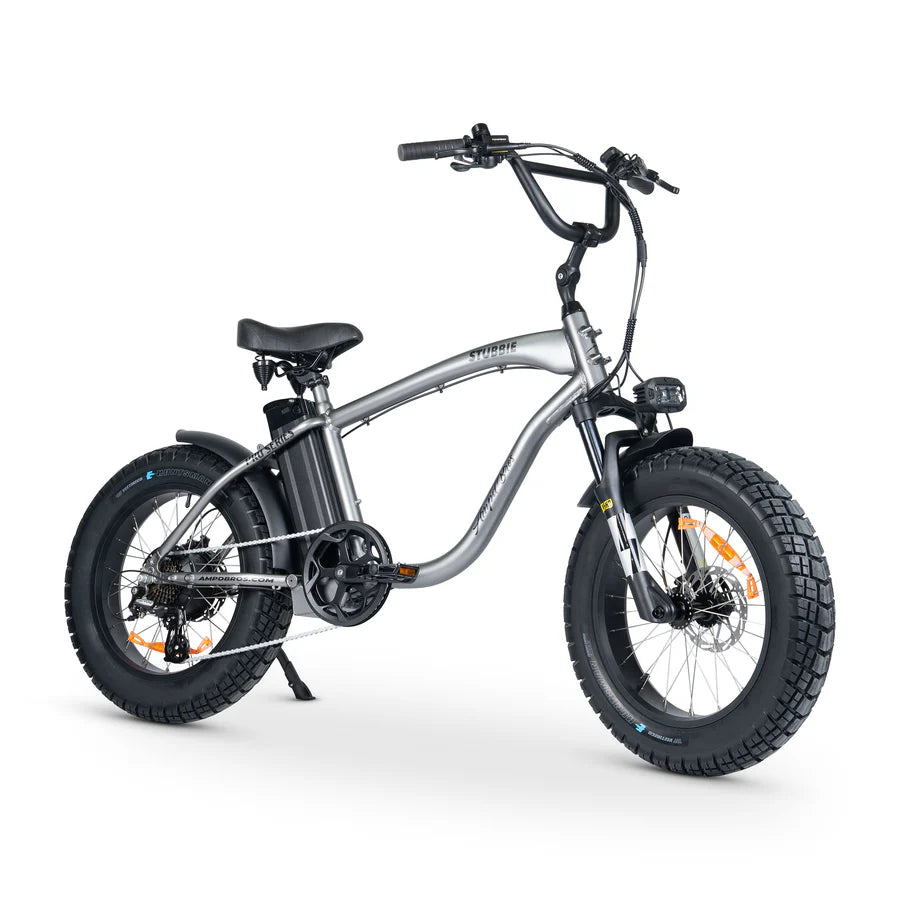

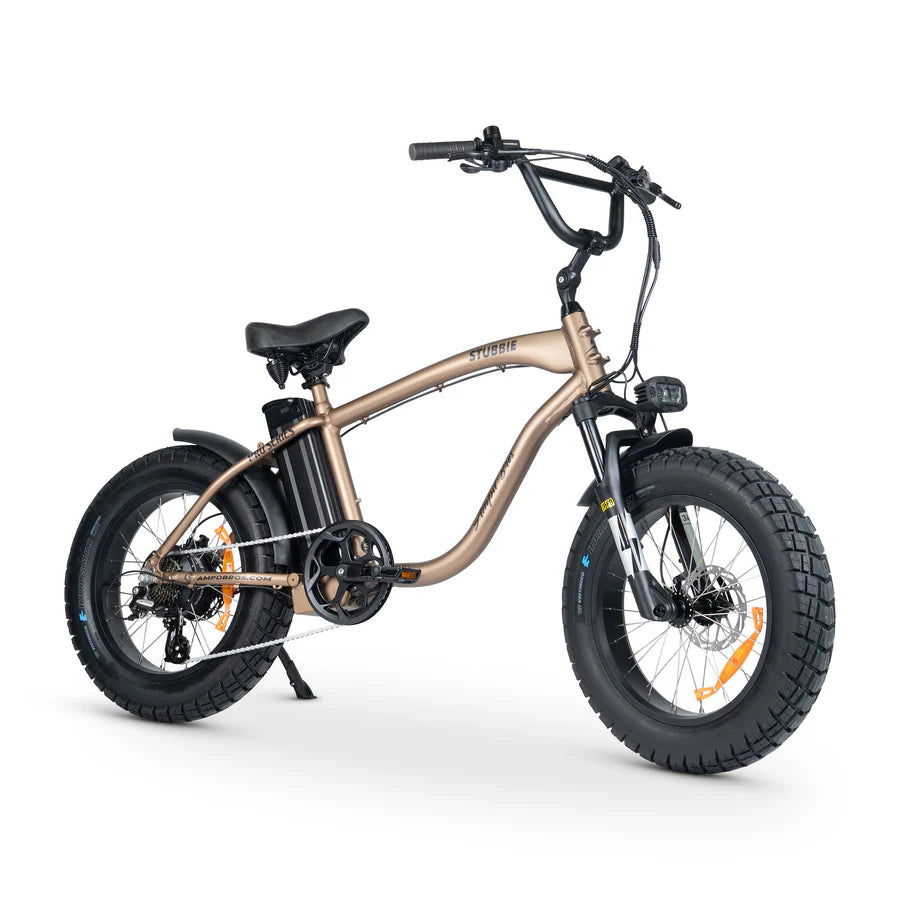

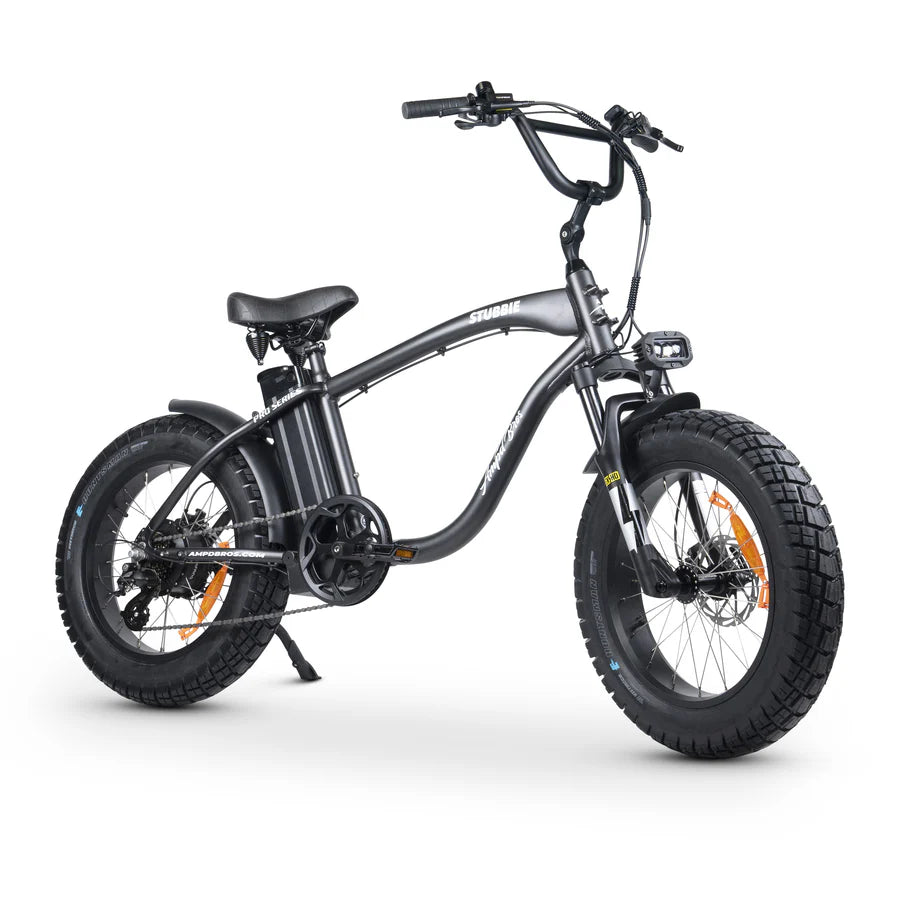

Ampd Bros Stubbie Pro Edition S2

STUBBIE CRUISERS
Speed & Range
- Range 60km+
- Top Speed 25km/h (or Unlock up to 38km/h for Private Property Use)
- Stubbie Pro Top Speed
Battery
- Samsung 48V / 720Wh, 15AH Premium 21700 lithium cells. Battery is also removable and can be charged in bike or separately.
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 15 Degree / 25% Incline PAS
- Seat Velo Comfort Seat with Adjustable Height (Colour may vary by model)
- Warranty 2 Years (1 Year on Batteries)
- Lights Aluminium Front 5W/100lm LED Black
- Grips Velo Wide Comfort Grip
- Bell Yes
Brakes
- Front and Rear Tektro Hydraulic Disc
- Discs 160mm
- E-Brakes Yes Motor Safety Cut Off
Display
- LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc
Controller
- Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain
- Electric Motor Bafang RMG060 Rear Hub Drive
- Power Output 250W Limited - Can be Unlocked to 500W for Off Road Private Property Use.
- Power Output Stubbie PRO 250W Limited - Can be Unlocked to 750W for Off Road Private Property Use.
- Max Torque 65N.m or 80N.m on Stubbie PRO Models
- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance
Construction
- Frame Aluminium - Step Over
- Handlebars Aluminium with Promax Adjustable Stem
Suspension
- Standard Models None - Can be optioned with Promax Suspension Seat Post for maximum comfort
- Stubbie PRO Adjustable Front Suspension Fork
Wheels & Tyres
- 20x4.0" Kenda Krusade Fat Mud Tyres (Standard Models)
- 20x4.0" VEE Tire Huntsman Puncture Resistant Tyres (PRO Models)
Charging
- 6-8hrs with Standard 2A Included Charger
- Optional 5A Fast Charger Available
Dimensions
- Overall Length 1,800mm
- Handlebar Height 1,050-1,150mm
- Handlebar Width 700mm
- Seat Height 800-920mm Adjustable
- Ground Clearance 230 mm
- Wheel Base 1,200 mm
- Rider Height Ideal for Riders up to 190cm Tall
Weights
- N.W of Battery 3.73kg
- N.W of Bike 38 kg
- Max Loading 120 kg
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather condition
