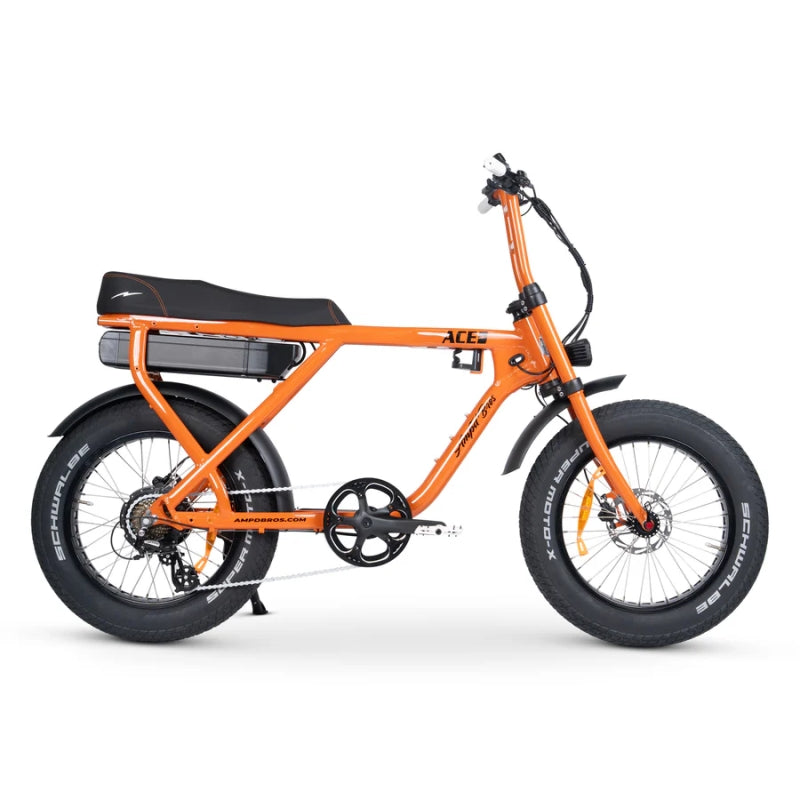

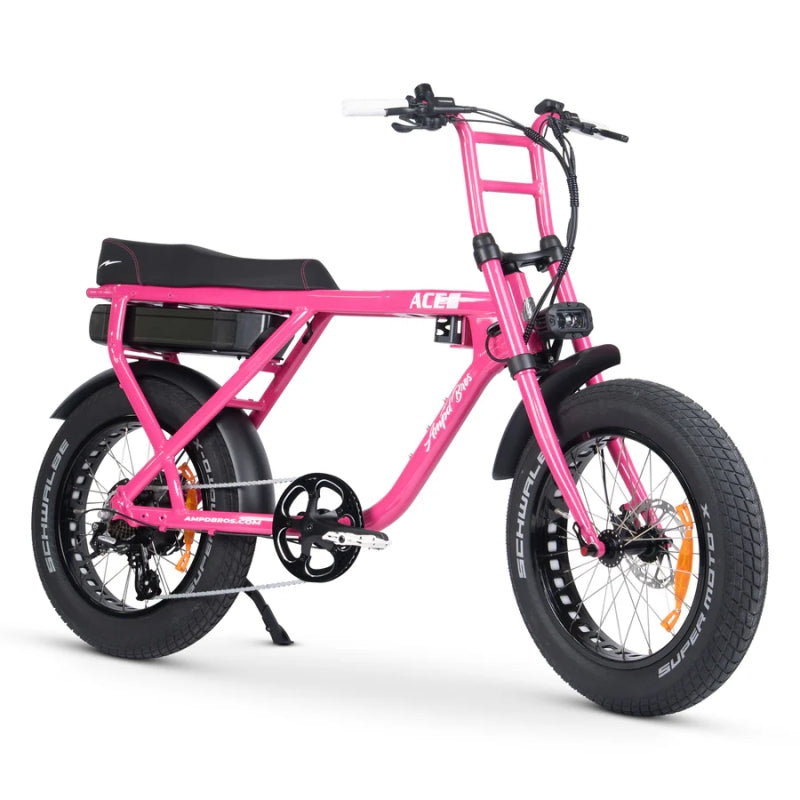

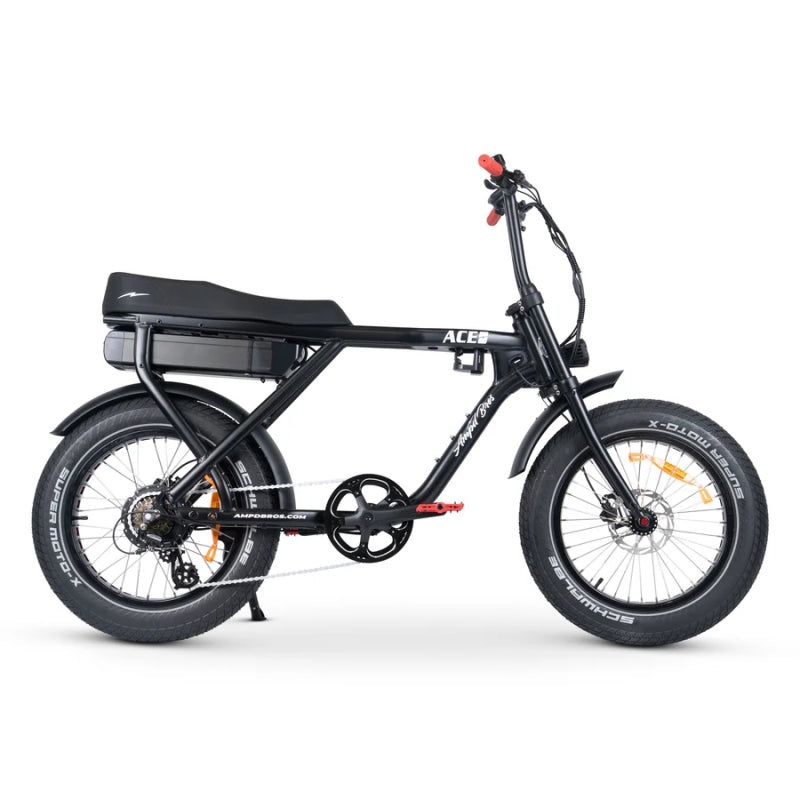

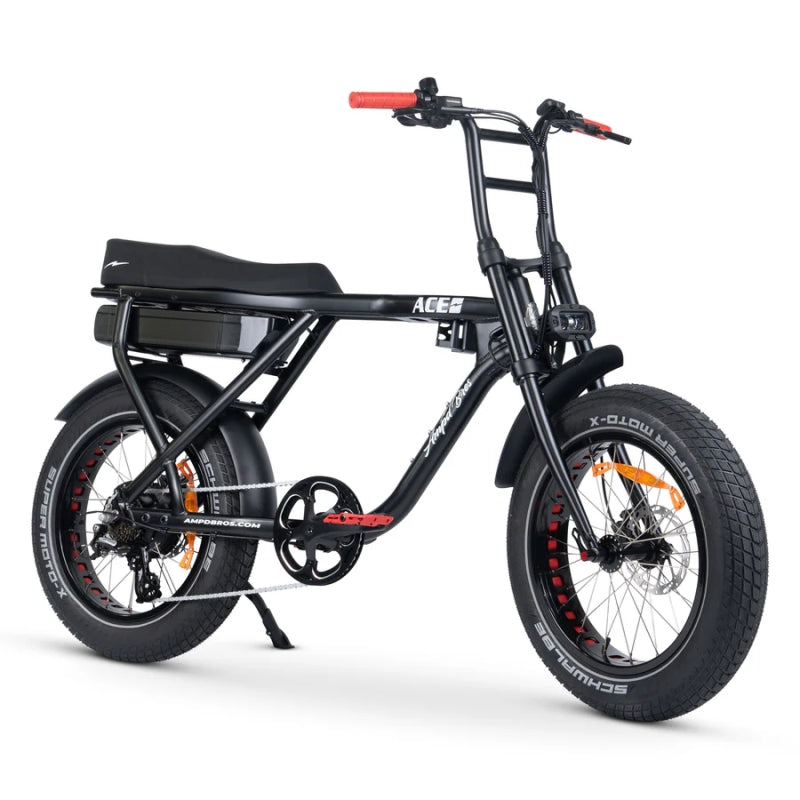

ACE-X STREET - Stand Out. Ride Bold.
The ACE-X STREET takes the legendary ACE-X platform and cranks up the style for 2025. With eye-catching new colour combos and the same rugged performance that made it a fan favourite, this is the ultimate street cruiser with attitude.
Built in collaboration with our in-house team, the ACE-X STREET continues the legacy of Australia's most sought-after fat tyre electric bike. Whether you're turning heads on the pavement or cruising through urban landscapes, this bike delivers a seamless mix of power, comfort and unmistakable style.
What's New for the ACE-X STREET?

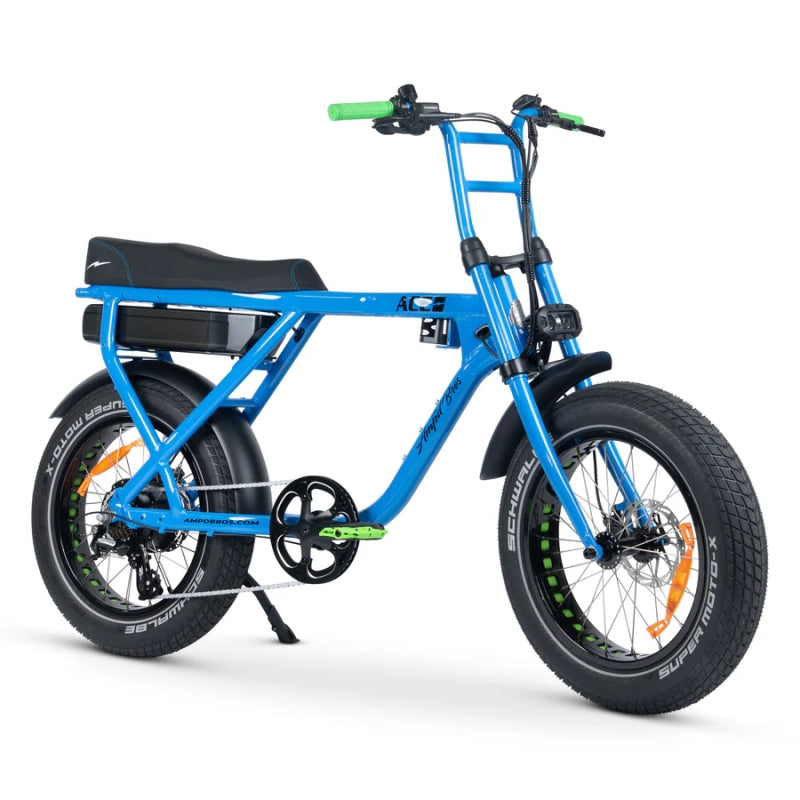

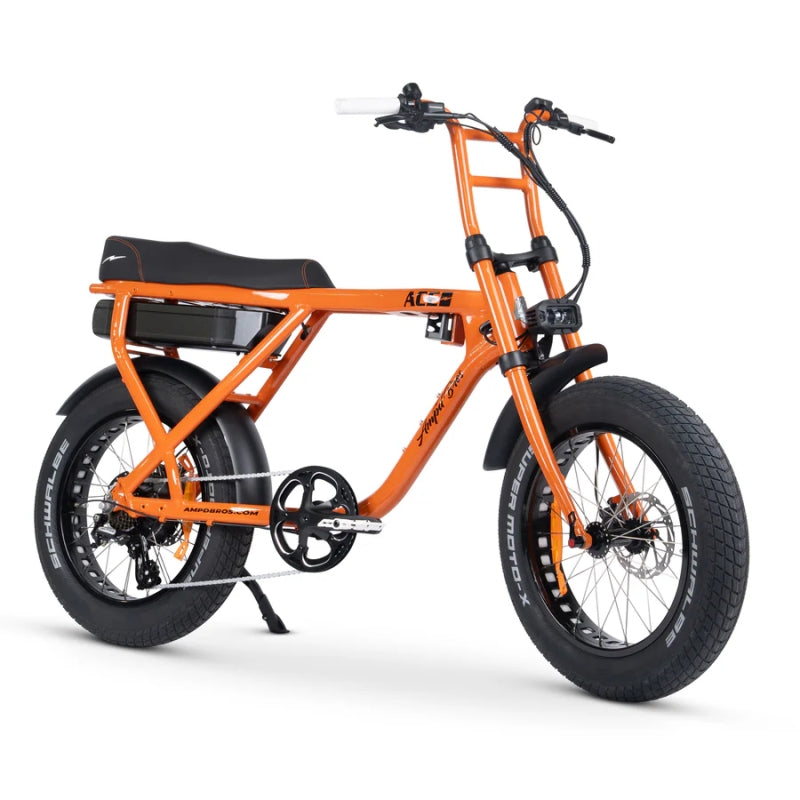

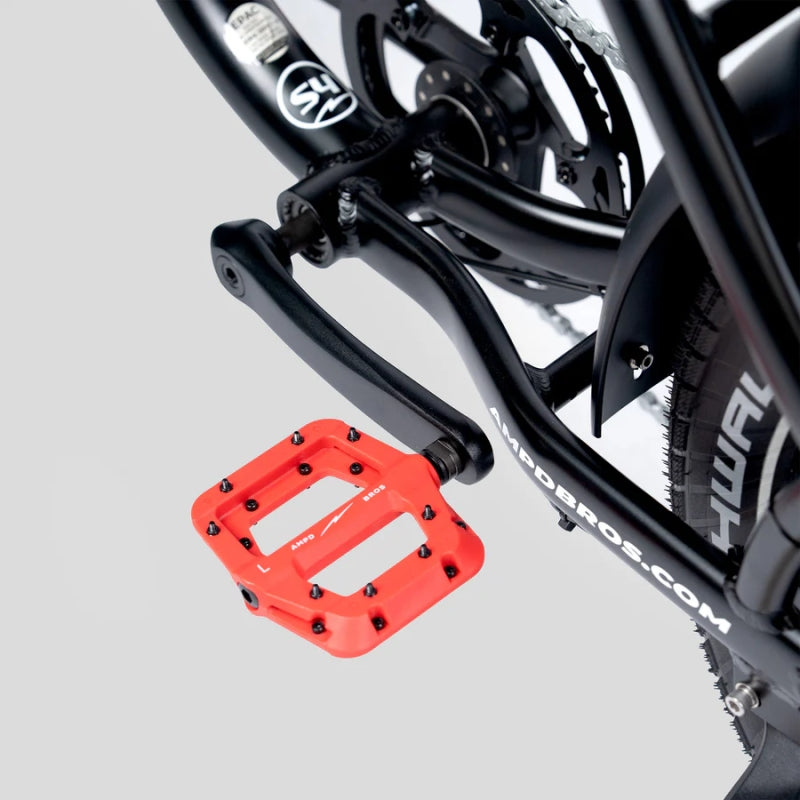

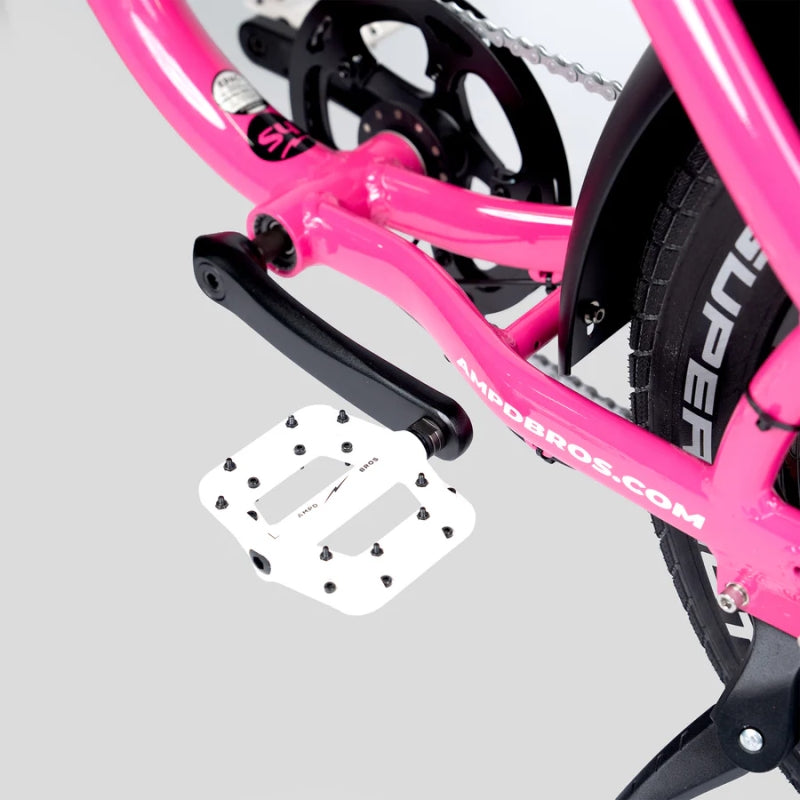

�o. Bold new colours - Make a statement wherever you ride, plus each bike comes with uniquely styled pedals, grips, seat and wheels!
�o. 52V 15AH Battery - More power, more range, more fun

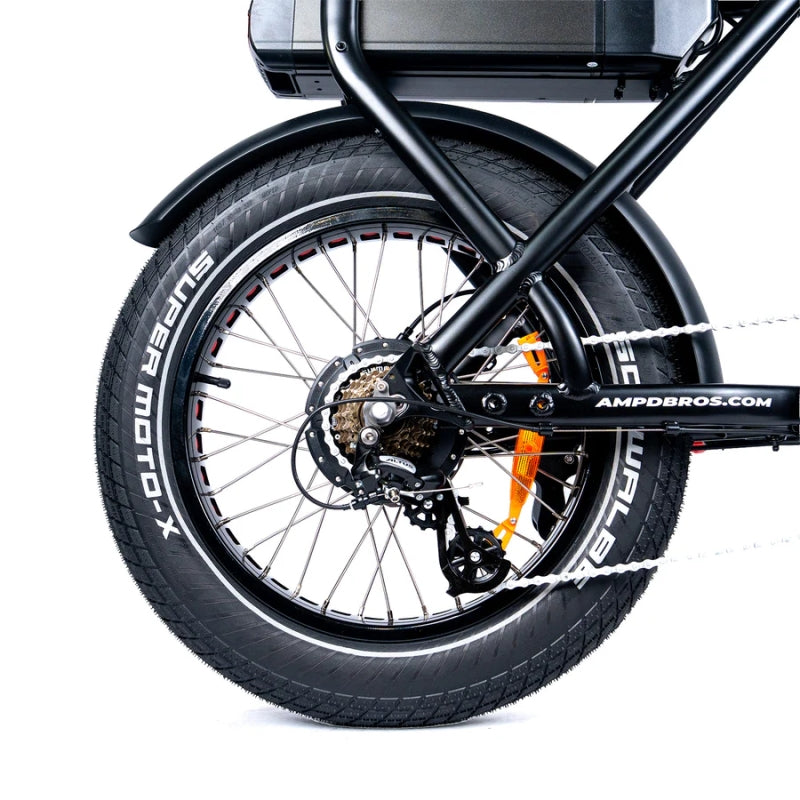

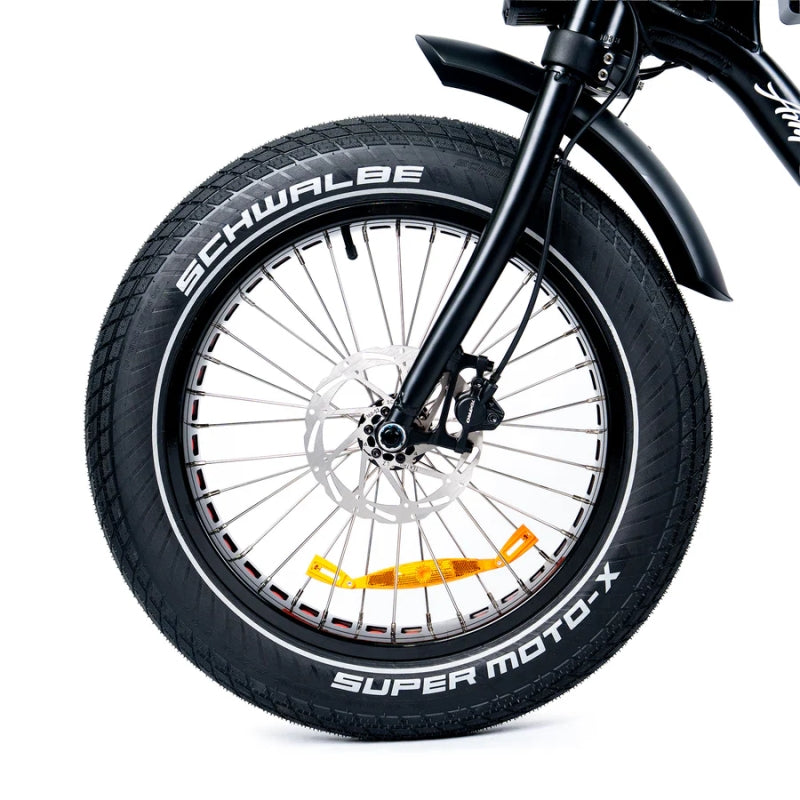

�o. Schwalbe Super Moto X Tyres - Slick new tyres perfect for the streets

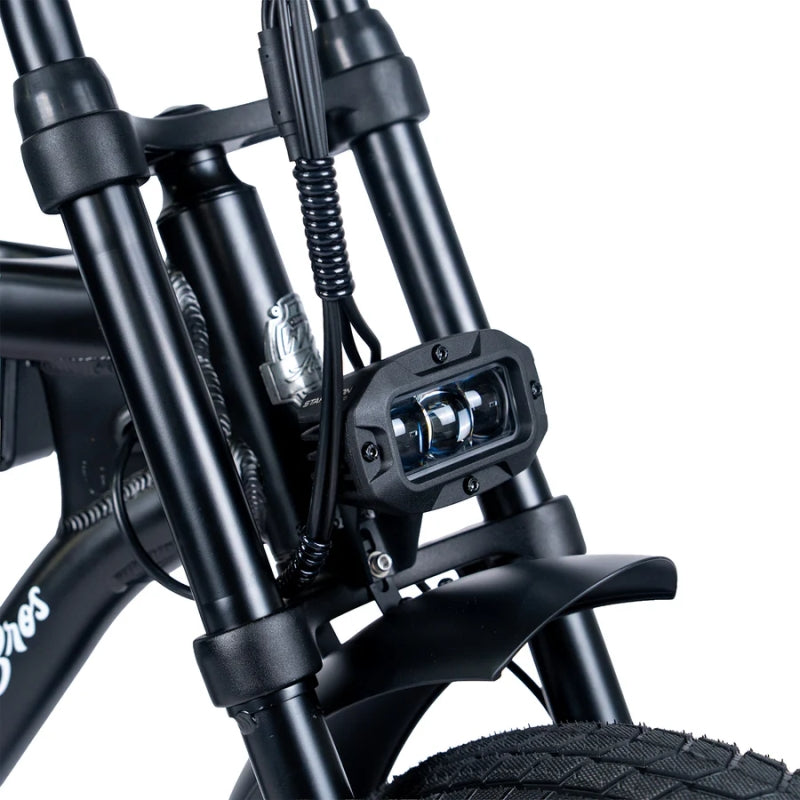

�o. Rugged Headlight - See clearly when cruising with our new Aluminium LED Light
�o. Micro Intelligent Colour Display - Stay informed with a crisp, modern interface
Performance Meets Street-Ready Design

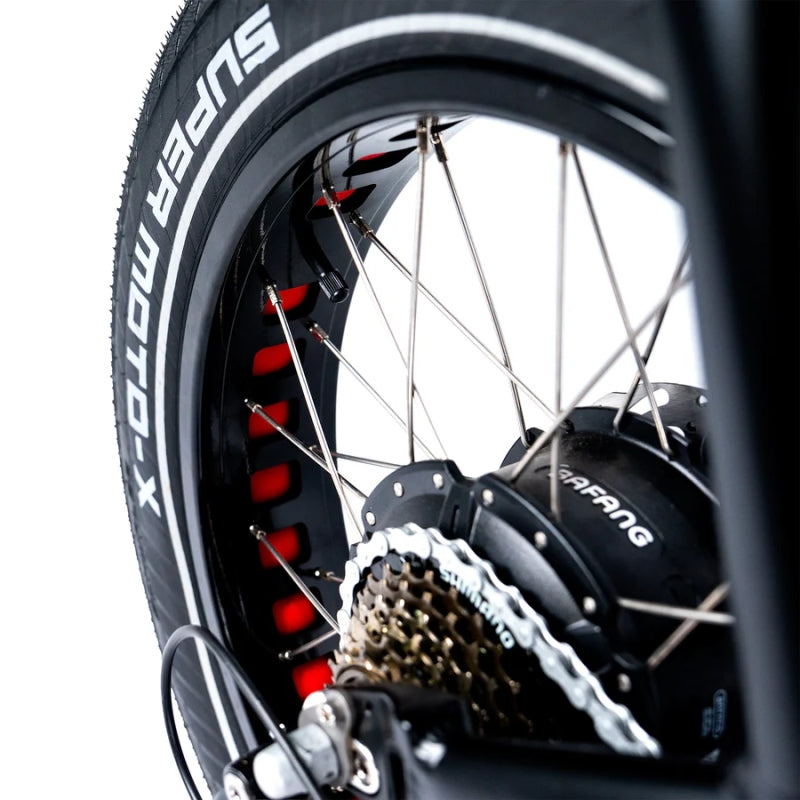

Under the hood, the ACE-X STREET doesn't just look good-it performs. Featuring a High Torque Bafang Rear Hub Motor, Shimano 7-Speed Derailleur, and Tektro Hydraulic Disc Brakes, this bike is built to handle whatever the streets throw your way. The 20x4' Schwalbe Supermoto tyres provide superior grip and comfort, while the custom Master Control Unit optimises power delivery for an effortless ride.
With a spacious seat for two and a removable Samsung battery, you'll enjoy up to 60km of range per charge. Add the Off-Road Throttle Kit for an extra boost of fun.
If you're looking for an electric bike that blends power, performance, and bold street style, the ACE-X STREET is your perfect ride.
Make a statement. Own the street. Ride the ACE-X STREET.

Reminder: Always check with your local authority regarding where and how electric bikes like the ACE can be ridden safely and legally in your area.

ACE SERIES 4

Range

•  Ace Mini Models 40km+
•  Ace Standard Models 60km+
•  Ace Plus/Cargo Models 80km+

Battery

•  Ace Mini 48V / 480Wh, 10AH
•  Standard 52V / 780Wh, 15AH
•  Plus/Cargo 52V / 1,040Wh, 20AH
•  Samsung Premium 21700 Lithium cells
•  Battery is removable and can be charged in bike or separately.

Motor Drive

•  All Models Bafang Rear Hub 250W High Torque Motor
•  Ace Mini & Standard 65N.m
•  Ace Plus+ & Cargo 80N.m
•  All Models Restricted to 25km/h

Controller

• Ampd Bro's Custom - Best-in-class power density and state-of-the-art motor control algorithms.
•  Ace Mini & Standard Rated to 500W / Peak 750W+
•  ACE Plus/Cargo Rated to 750W / Peak 1,000W+

Ride Modes

•  Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
•  Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
•  Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit

Features

•  Hill Ability Up to 15º Degree / 25% Incline PAS

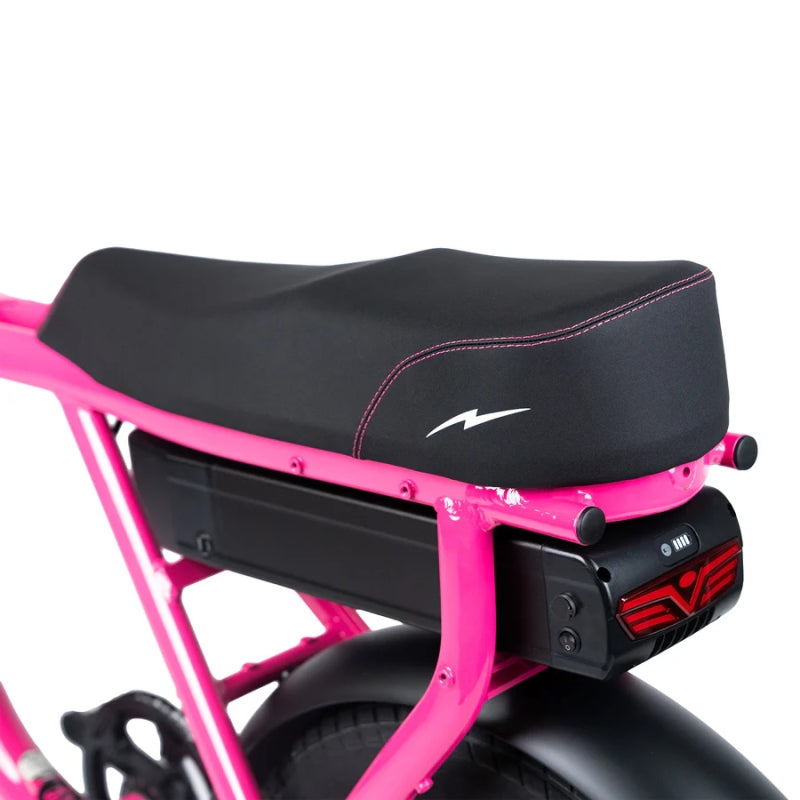

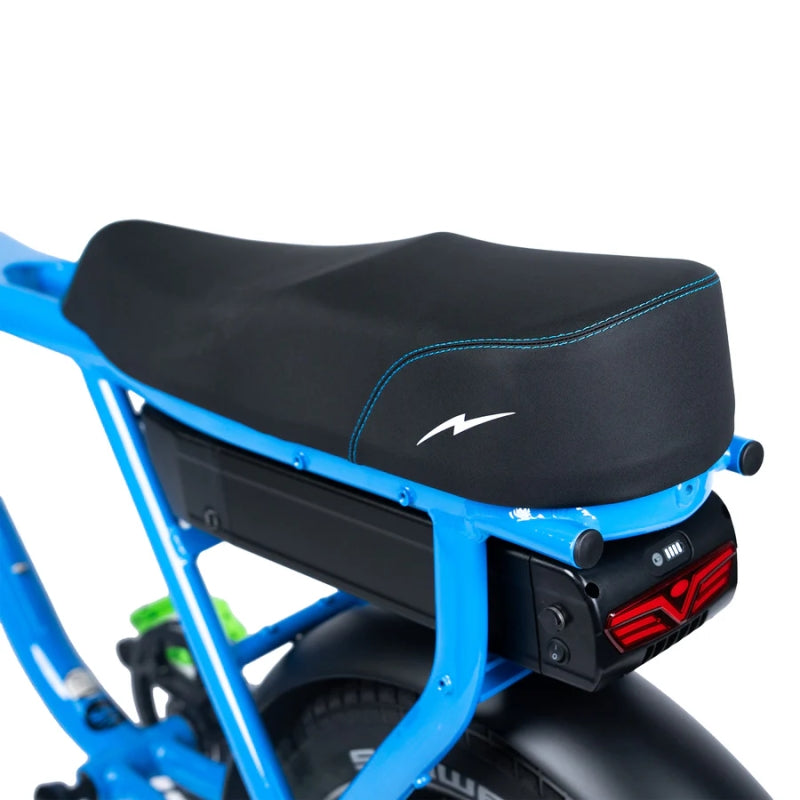

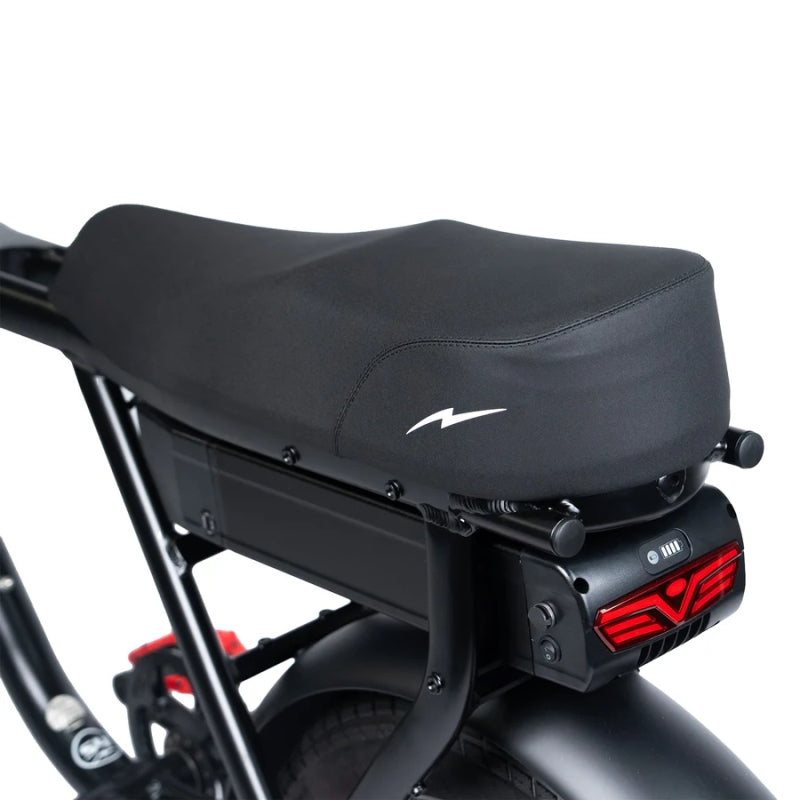

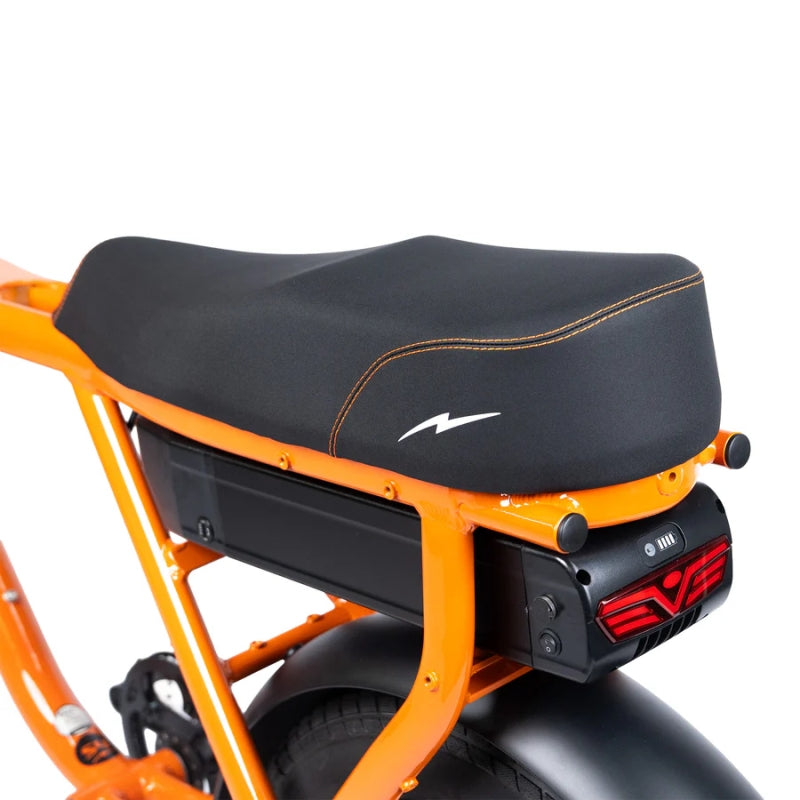

•  Seat Custom Large Black Dual Seat for 2 Riders
•  Warranty 2 Years (1 Year on Batteries)
•  Lights Front LED Headlight with DRL
•  Lights Rear LED Brake Light inbuilt to battery pack
•  Grips Black Velo Wide Comfort
•  Bell Yes

Brakes

•  Ace Mini Ampd Bros Hydraulic with 160mm Disc

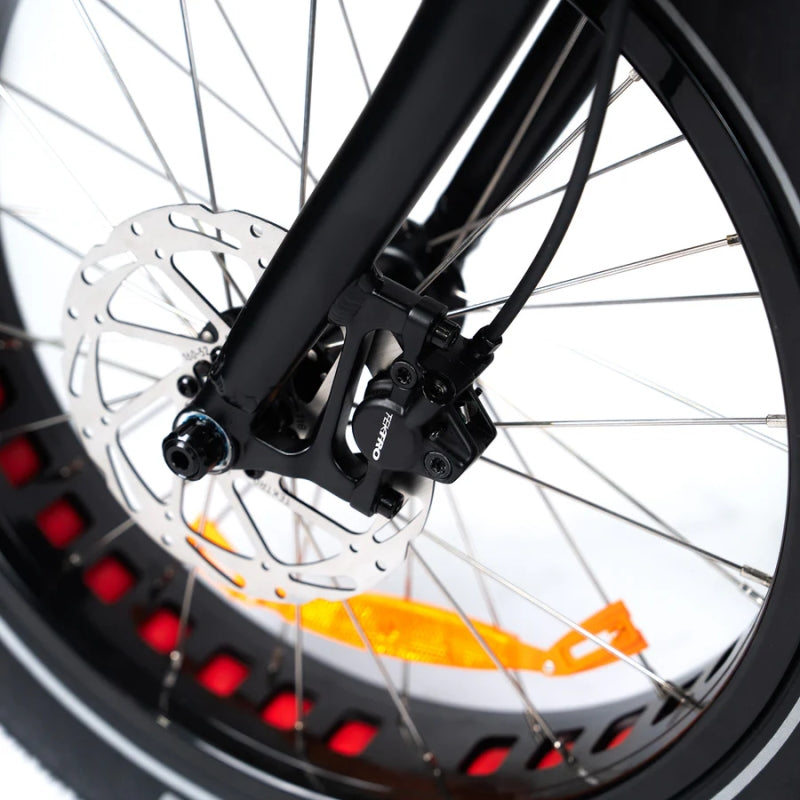

•  Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
•  E-Brakes Yes Motor Safety Cut Off

Display

• Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc

Drivetrain

•  Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
•  All Other Models Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
•  Derailleur Shimano Altus

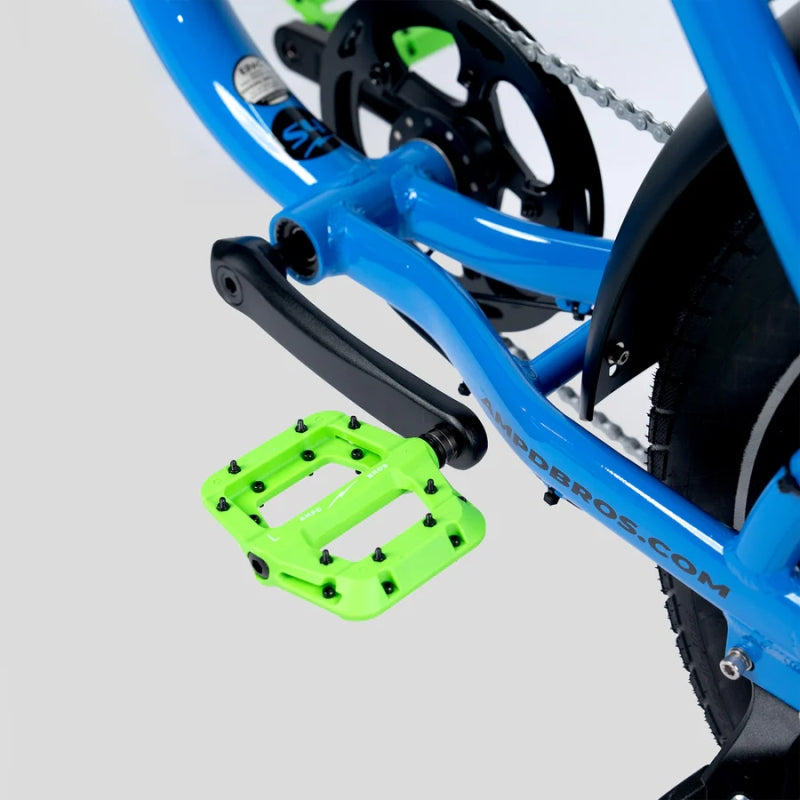

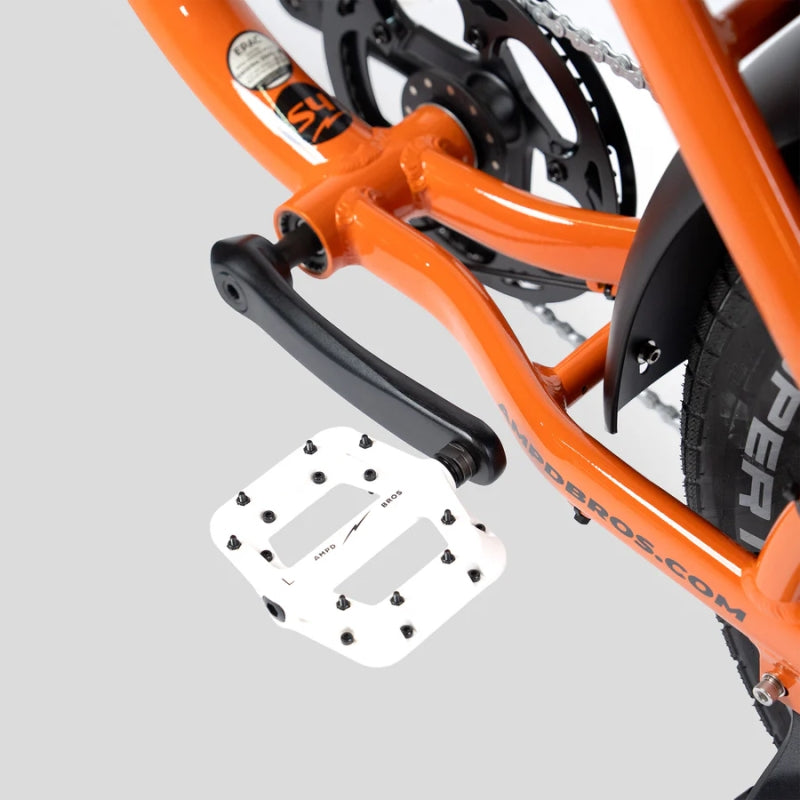

•  Pedals Wellgo Alloy - Black
•  Chain KMC Z Series High Performance & Rust Resistant

Construction

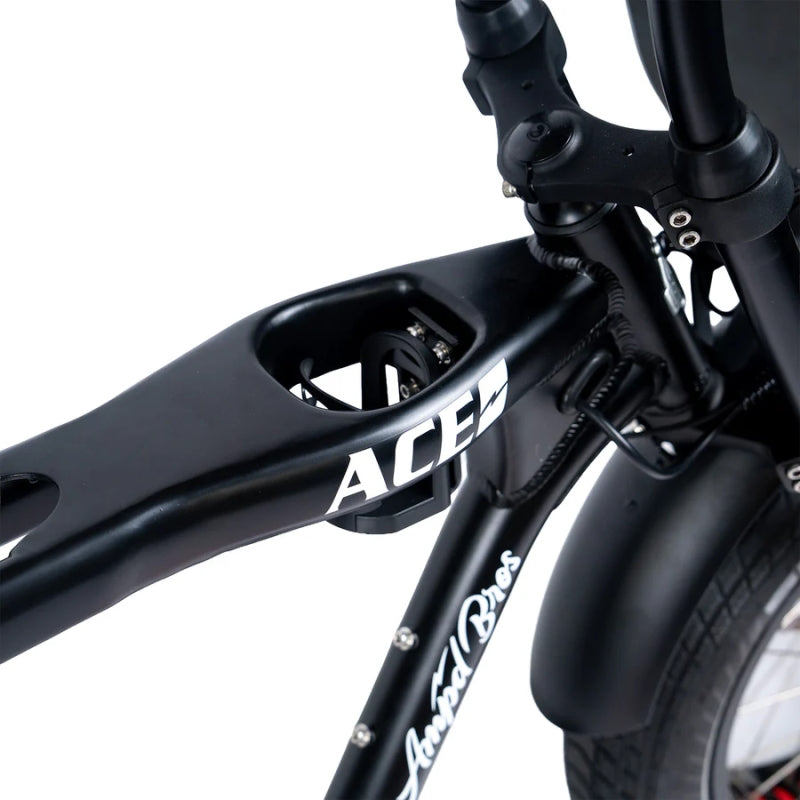

•  Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
•  Handlebars Aluminium Motorcycle Inspired with Adjustable Height
•  Fenders Matte Black Aluminium

Suspension

•  Mini & Standard Models No Suspension
•  Plus+ Models Front Custom Tuned Adjustable Fork
•  Cargo Models Front Independent Suspension Fork (Non Adjustable)

Wheels & Tyres

•  Ace Mini 16x.40" Innova Mud Tyres
•  20x4.0" Kenda Krusade Fat Mud Tyres

Charging

• 5-6hrs 10Ah Batteries with Standard 2A Charger
• 7-8hrs 15Ah Batteries with Standard 2A Charger
• 9-10hrs 20Ah Batteries with Standard 3A Charger
• Optional 5A Fast Charger Available for 2.5x Faster Charging

Dimensions

•  Overall Length 1,750 mm
•  Handlebar Height 1,140 - 1,190 mm
•  Handlebar Width 660 mm
•  Seat Height 810 mm Fixed Height
•  Seat Length 600 mm
•  Ground Clearance 270 mm
•  Wheel Base 1,160 mm
•  Rider Height Ideal for Riders up to 200cm Tall

Ace Mini Dimensions

•  Overall Length 1,470 mm
•  Handlebar Height 1040 mm
•  Handlebar Width 660 mm
•  Seat Height 770 mm Fixed Height
•  Seat Length 370 mm
•  Ground Clearance 190 mm
•  Wheel Base 990 mm
•  Rider Height Ideal for Riders up to 170cm Tall

Weights

•  N.W of 10Ah Battery 3.2kg
•  N.W of 15Ah Battery 4.34 kg
•  N.W of 20Ah Battery 5.12 kg
• N.W of Standard ACE + Battery 32.3 kg
•  N.W of ACE Plus+ Battery 36 kg
•  N.W of ACE Mini + Battery 29 kg
•  N.W of ACE Cargo + Battery 40.5 kg
• Max Loading 180 kg
• ACE Mini Max Loading 100 kg

Inclusions

•  In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.

*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
