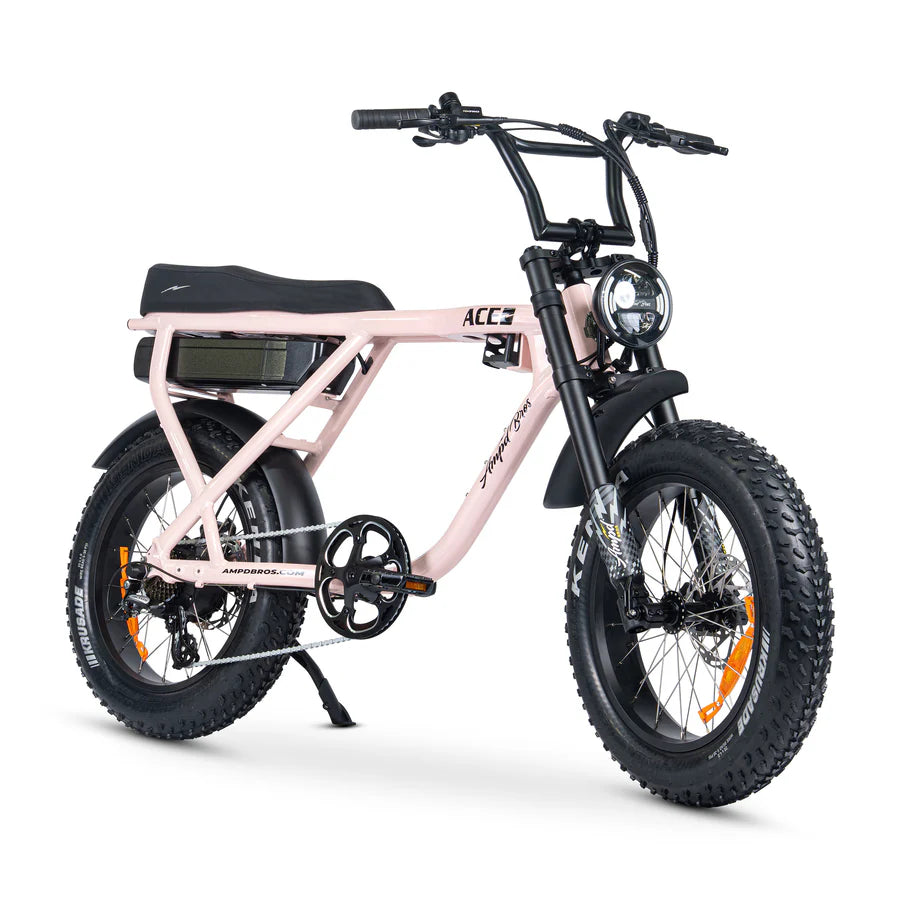

Ampd Bros Ace X Plus S4

ACE X PLUS+

Speed & Range

•  Range Standard Models 60km+
•  Range Plus & Rally Models 80km+
•  Speed Standard Models 25km/h (or Unlock up to 38km/h for Private Property Use)
•  Speed Plus & Rally Models 25km/h (or Unlock up to 45km/h for Private Property Use)

Battery

•  Standard Models 52V / 720Wh, 15AH
•  Plus+ & Rally Models 52V / 960Wh, 20AH
•  Samsung Premium 21700 Lithium cells
•  Battery is removable and can be charged in bike or separately.

Ride Modes

•  Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
•  Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
•  Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit

Features

•  Hill Ability Up to 15º Degree / 25% Incline PAS
•  Seat Custom Large Black Dual Seat for 2 Riders
•  Warranty 2 Years (1 Year on Batteries)
•  Lights Front LED 220lm Headlight with DRL
•  Lights Rear LED Brake Light inbuilt to battery pack
•  Grips Black Velo Wide Comfort
•  Bell Yes

Brakes

•  All Models Tektro Hydraulic Disc
•  Discs 180mm
•  E-Brakes Yes Motor Safety Cut Off

Display

• Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc

Controller

• Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.

Drivetrain

•  Electric Motor Bafang RMG062 Latest Generation Rear Hub Drive
•  Power Output Standard Models 250W Limited - Can be Unlocked to 500W for Off Road Private Property Use.
•  Power Output Plus+ Models 250W Limited - Can be Unlocked to 750W for Off Road Private Property Use.
• Torque 65N.m and 80N.m on Plus Models
•  Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
•  Derailleur Shimano Altus
•  Pedals Wellgo Alloy - Black
•  Chain KMC Z Series High Performance

Construction

•  Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
•  Handlebars Aluminium Motorcycle Inspired with Adjustable Height
•  Fenders Matte Black Aluminium

Suspension

•  Standard Models No Suspension
•  Plus+ Models Front Independent

Wheels & Tyres

•  20x4.0" Kenda Krusade Fat Mud Tyres

Charging

• 7-8hrs 15Ah Batteries with Standard 2A Included Charger
• 9-10hrs 20Ah Batteries with Standard 3A Included Charger
• Optional 5A Fast Charger Available for 2.5x Faster Charging

Dimensions

•  Overall Length 1,750 mm
•  Handlebar Height 1,140 - 1,190 mm
•  Handlebar Width 660 mm
•  Seat Height 810 mm Fixed Height
•  Seat Length 600 mm
•  Ground Clearance 270 mm
•  Wheel Base 1,160 mm
•  Rider Height Ideal for Riders up to 200cm Tall

Weights

•  N.W of 15Ah Battery 4.34 kg
•  N.W of 20Ah Battery 5.12 kg
• N.W of Standard ACE + Battery 32.3 kg
•  N.W of ACE Plus+ Battery 36 kg
• Max Loading 180 kg
